ND Filters Demystified: How They Work and How to Use Them
Neutral density (ND) filters are essential tools for controlling light in both photography and videography. By reducing the amount of light entering your lens, these filters allow for greater creative freedom—enabling longer exposures, wider apertures, or motion blur effects even in bright conditions. In this guide, we’ll explore how ND filters operate, the variety of types available, practical ways to incorporate them into your workflow, and key tips for selecting the ideal filter to suit your shooting needs.
How Neutral Density (ND) Filters Work
Neutral Density (ND) filters, commonly crafted from optical glass or resin, function by reducing the amount of light entering your camera lens. These filters are partially or fully coated in gray, allowing you to block light by a specific number of stops while preserving the scene’s true colors. Essentially, ND filters act like sunglasses for your camera, enabling slower shutter speeds or wider apertures in bright conditions without overexposing your image.
By controlling light intake, ND filters unlock creative possibilities unattainable through other techniques. They allow you to render waterfalls with silky motion, smooth ocean surfaces, or dreamlike skies, giving photographers precise control over exposure while enhancing artistic effects.
When and Why to Use ND Filters
ND filters are a staple in landscape photography, yet their applications extend far beyond. Here are the key scenarios where ND filters excel:
Long-Exposure Photography
Capturing motion through long exposures requires slow shutter speeds, which can be challenging in bright light. ND filters are essential in these conditions, as they reduce incoming light and make extended exposures feasible without overexposing the shot. Without ND filters, daytime long exposures would result in washed-out images, with details lost to excessive brightness.
With the proper ND filter, you can achieve stunning motion blur effects—turning rushing water into silky streams or recording dynamic skies as clouds streak across the frame—bringing drama and fluidity to your photographs.
Balancing Exposure in Bright Conditions
One of the biggest challenges photographers face in high-contrast scenes is achieving balanced exposure between the sky and the foreground. ND filters provide a simple solution by reducing overall light entering the lens, preventing overexposure while preserving details in both highlights and shadows.
For instance, when shooting a landscape with a bright sky and darker foreground, a graduated ND filter can selectively darken the sky without affecting the land below. This allows you to capture a well-balanced image with natural tones and retained detail across the scene.
Achieving Shallow Depth of Field in Bright Light
Capturing images with a shallow depth of field under strong sunlight can be challenging without overexposing the shot. ND filters help by reducing the amount of light entering the lens, enabling the use of wide apertures even in bright conditions. This allows photographers to create smooth, creamy bokeh and beautifully blurred backgrounds, enhancing subject isolation.
For example, when shooting outdoor portraits on a sunny day, an ND filter allows you to maintain a wide aperture to achieve soft, dreamy background blur while keeping the exposure perfectly balanced.
Types of ND Filters
ND filters come in various forms, strengths, and mounting styles, each designed to suit specific shooting needs and creative preferences. Here’s a breakdown of the main ND filter types:

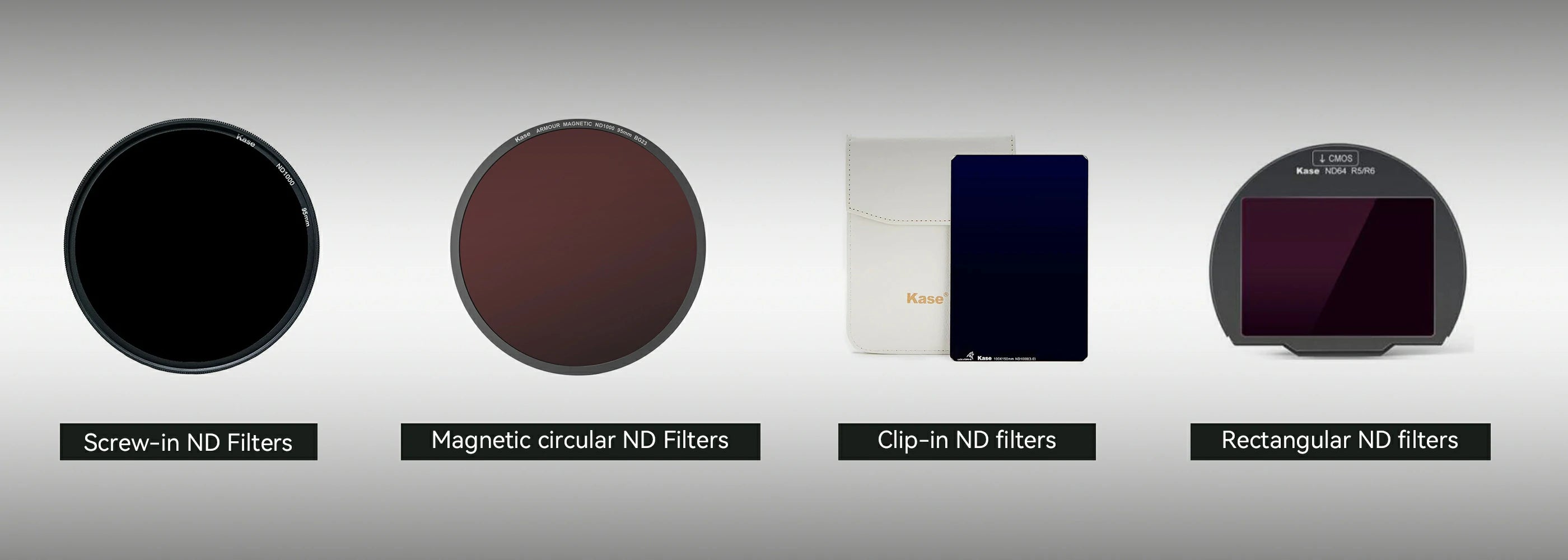

Circular Screw-In & Magnetic ND Filters
These filters attach directly to the front of the lens via a screw thread or a magnetic adapter for quick installation. They are compact, convenient for everyday shooting, and available in multiple sizes to fit different lenses.

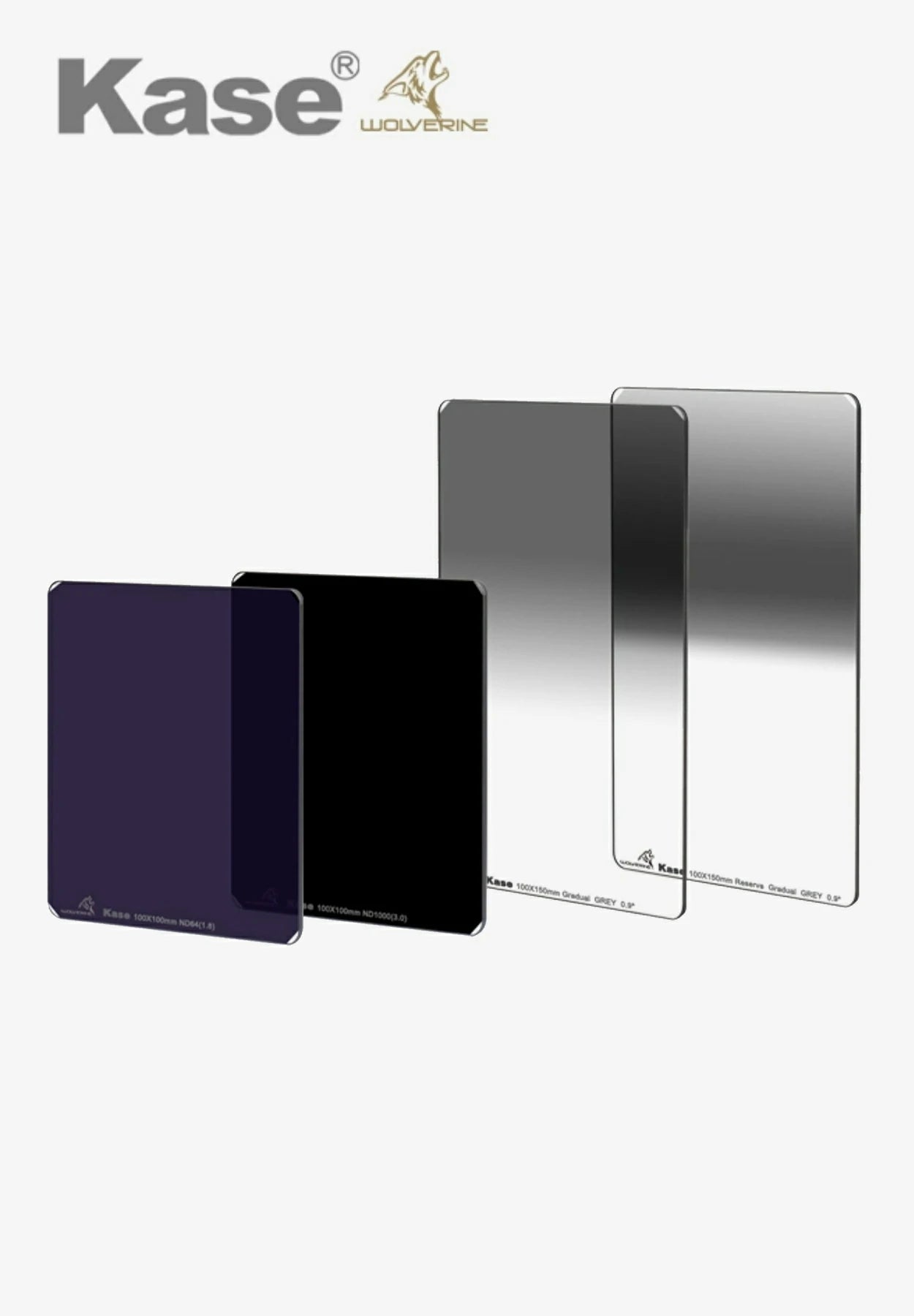

Square & Rectangular ND Filters
Typically used with filter holder systems, these filters offer flexibility for stacking multiple ND filters and combining with other accessories. While less portable, they are favored by professional landscape photographers for their versatility and ability to precisely control exposure.
Drop-In ND Filters
Designed for mirrorless or certain specialized camera systems, drop-in ND filters fit inside the camera body or lens mount. They are ideal for photographers seeking a minimalistic setup without adding bulk to the front of the lens.
Master Light and Motion with Kase ND Filters
ND Filter Strengths
ND filters come in a range of light-blocking strengths, measured in stops. Common options include ND2 (1 stop), ND4 (2 stops), ND8 (3 stops), and higher. The filter strength you select depends on the lighting conditions and the creative effect you want to achieve.
Filter labeling can vary: some brands indicate the strength directly as ND numbers (e.g., ND16), while others use optical density values (e.g., ND 1.2) to represent the same light reduction. Always verify the f-stop reduction in the specifications to ensure you pick the right filter for your needs.
The following table summarizes the most frequently used ND filter strengths, making it easy to identify the optimal choice for your photography.
| ND Filter | ND Factor | Optical Density |
|---|---|---|
| ND1 | ND2 | ND 0.3 |
| ND2 | ND4 | ND 0.6 |
| ND3 | ND8 | ND 0.9 |
| ND4 | ND16 | ND 1.2 |
| ND5 | ND32 | ND 1.5 |
| ND6 | ND64 | ND 1.8 |
| ND7 | ND128 | ND 2.1 |
| ND8 | ND256 | ND 2.4 |
| ND9 | ND512 | ND 2.7 |
| ND10 | ND1000 | ND 3.0 |
| ND12 | ND4000 | ND 3.6 |
| ND15 | ND32000 | ND 4.5 |
| ND16 | ND64000 | ND 4.8 |
See Every Kase ND Filter Available
How to Use Neutral Density (ND) Filters: Step-by-Step Guide
Using ND filters is simpler than it may seem, but mastering them takes a bit of practice. Follow these steps to achieve precise exposure control and creative effects:
Mount Your Camera on a Tripod
ND filters are often used for long exposures. To avoid camera shake and ensure sharp images, always secure your camera on a stable tripod.
Frame Your Shot First
Compose your scene before attaching the ND filter. Darkened filters make it difficult to see through the viewfinder, so finalize your composition in advance.
Set Focus Before Installing the Filter
Lock in your focus manually or with autofocus before mounting the ND filter. After installation, the reduced light can interfere with accurate focusing.
Take a Test Shot Without the Filter
Capture a reference image to understand the baseline exposure. Record aperture, shutter speed, and ISO settings to guide your ND adjustments.
Choose the Appropriate ND Filter
Evaluate the lighting conditions and desired creative effect. Select the ND filter with the correct strength (e.g., ND8, ND64, ND1000) for your scene.
Install the ND Filter Correctly
- Screw-in or Magnetic ND: Twist onto the lens front.
- Square/Rectangular ND: Insert into the filter holder and slide to align.
Ensure the filter is securely mounted and no light leaks occur.
Adjust Camera Settings for ND Compensation
- Switch to manual mode (M). For exposures longer than 30 seconds, use bulb mode.
- Calculate the new shutter speed:
Example: Original shutter speed = 1/30s, using ND64 (6 stops): 1/30 × 64 ≈ 2 seconds.
- Adjust aperture or ISO if needed to maintain desired exposure and depth of field.
Use a Remote Shutter or Timer
Trigger the shutter remotely to avoid any camera shake during long exposures.
Account for Changing Light Conditions
During sunrise or sunset, light levels change quickly:
- Sunrise: Consider reducing 1 stop.
- Sunset: Consider increasing 1 stop.
Alternatively, adjust aperture or ISO rather than further extending shutter speed.
This approach ensures you get sharp, balanced exposures while taking full advantage of ND filters for long-exposure or creative photography.
How to Choose the Right ND Filter
Selecting the perfect ND filter requires considering multiple factors to ensure it fits your shooting style and lighting conditions:
- Filter Type
Decide whether you need a variable ND filter for versatility across different scenarios, or a fixed-stop ND filter for optimal image quality and consistency. - Filter Shape
Fixed ND filters come in round and square/rectangular formats. Each has its advantages: round filters are quick to mount and convenient for general use, while square filters paired with holders offer flexibility for stacking and positioning. Refer to our comparison guide if unsure which shape suits your lens system. - Filter Size
Confirm the diameter of your lens. For photographers with multiple lenses, choose the filter that fits the largest lens. With circular ND filters, step-up rings allow compatibility with smaller lenses, making a single filter usable across your kit. - Filter Strength
The required ND strength depends on ambient light and your intended creative effect. For most beginners, ND8 (3 stops) or ND64 (6 stops) provides a versatile solution suitable for a variety of lighting conditions. - Material & Price
Once you’ve narrowed down size, shape, and strength, compare products. Optical glass filters with multi-layer or nano coatings deliver superior clarity and minimal color shift. Avoid low-cost resin filters if maximum image quality is your priority.
ND Filter FAQs: Everything You Need to Know
How many ND filters do I actually need?
The answer depends on your photography style and the lighting conditions you typically encounter. For beginners, owning two fixed-stop ND filters is often enough to cover most scenarios. You can also stack filters to achieve stronger light reduction. Variable ND filters offer added flexibility, allowing you to adjust the density without carrying multiple filters. However, for specialized techniques like ultra-long exposures, a high-strength ND filter such as ND1000 may be necessary.
How do I know which ND filter to use?
There’s no one-size-fits-all answer—it depends on your creative goal. Here’s a quick guideline:
- ND2 to ND8 (1–3 stops): Light reduction for slightly bright conditions or subtle motion blur.
- ND16 to ND64 (4–6 stops): Moderate reduction for daytime long exposures, like smoothing water surfaces or achieving shallow depth-of-field in bright sunlight.
- ND1000 and higher (10+ stops): Maximum light reduction for ultra-long exposures. Perfect for turning rushing water into silk or capturing dynamic cloud movement, even in strong daylight.
If unsure, start with a mid-range ND filter like ND8 or ND16—these work in a wide variety of conditions and give you room to experiment.
How do I choose the right ND filter size?
The filter size corresponds to your lens’s front diameter, typically marked in millimeters (e.g., 58mm, 72mm) on the lens barrel or cap. Always match the ND filter to this size. For photographers with multiple lenses of different diameters, buy the filter for the largest lens and use step-up rings to fit smaller lenses. This approach keeps your kit minimal while maximizing compatibility.
